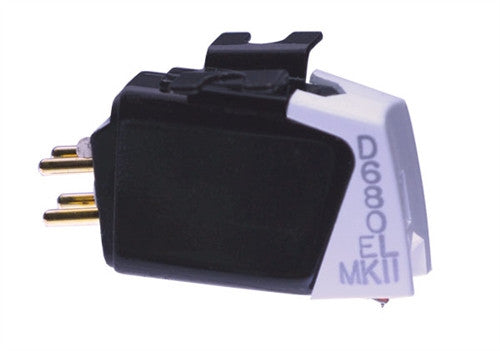

Stanton 680EL MkII-X cartridge
- Genuine, original Stanton cartridge, made in USA. The Choice of Professionals.
Stanton 680 EL MKII-X Cartridge Specifications
- Nominal Output, 5cm/sec.: 5.0 mV
- Frequency response: 20-20,000 Hz 1
- Channel separation: 35 dB
- Stylus type: Elliptical diamond
- Stylus tip radius: 0.4 0.7 mil
- Tracking force range: 2.0 - 7.0 g 2
- Recommended tracking force range: 3.5 g
- Internal inductance: 900 mH
- Recommended load resistance: 47 kOhm
- Cartridge colour, body/stylus: Black/White
- Cartridge weight without screws: 5.5 g
- Replacement stylus unit: D6800 EL MKII
- Stylus protection guard: D6827
- Accessories included: 6 Screws, 2 Nuts, 1 Owners Manual
Notes:
1. When the cartridge is terminated in the recommended load of
47K ohms and 275 pf.
2. Recommended by the manufacturer for optimum performance.
