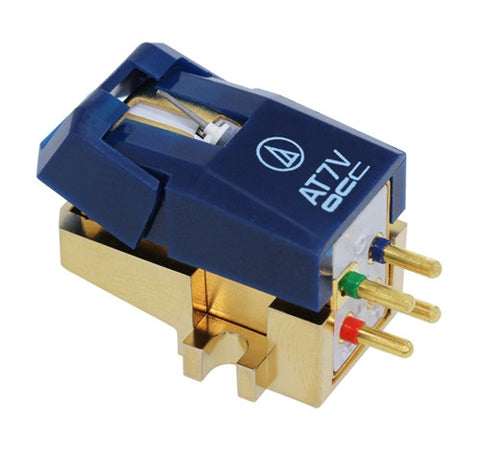

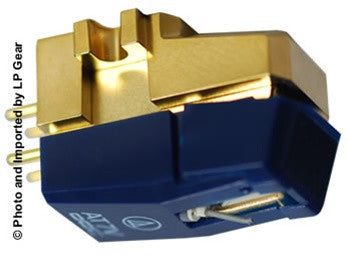

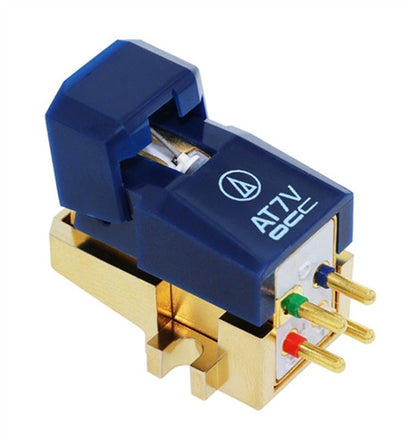

Audio-Technica AT7V Phono Cartridge
○ Square shank nude diamond for exquisite fidelity
○ Offers fluidity, smoothness and innate delicacy
○ Diamond tip r/R radii: 5/18 m (.0002 x .007 inch)
○ Carbon fiber cantilever for firm and sensitive response to grooves
○ PCOCC coil and terminal pins for signal purity
The Audio Technica AT7V phono cartridge is alluringly musical. It faithfully extracts and expresses the recorded musical artistry and complete harmonic sound quality lost in the detail by so many other more expensive cartridges. With independent left and right magnets and PCOCC coil and terminal pins for pure signal transmissions, it offers music listeners and audio enthusiasts a new high in fidelity and sound quality. Proven in use for many years in Japan, the Audio-Technica AT7V cartridge in now available in the US and is imported by LP Tunes. It works wonders in rejuvenating systems with lackluster sound. Rediscover how good your records really sound.
Audio-Technica AT7V Phono Cartridge Specifications
- Tonearm mount: 1/2 inch
- Type: Moving magnet, VM dual-magnet stereo cartridge
- Frequency response: 15Hz-25kHz
- Output voltage @ 1kHz,5cm/sec: 5mV
- Tracking force: 1.75 - 2.25 g (2.0 g standard)
- Load impedance: 47k ohms
- Channel separation @ 1kHz: 27dB
- Channel balance @ 1kHz: >1.5dB
- Dynamic compliance: 7.0 x 10-6 cm/dyne
- Static compliance: 35 x 10-6 cm/dyne
- Vertical tracking angle: 23
- Cantilever: Tapered aluminum alloy
- Stylus: Grain-oriented square shank nude special elliptical diamond with 0.2 x 0.7 mil tracing radii
- Dimensions: 17.3h x 15.2w x 26.5d
- Weight: 6.2 g
- Stylus replacement: Audio-Technica ATN7V (knob color: Indigo)
- Accessories included: Screwdriver, screws, nuts, washers
Reviews & Discussions
- Audiokarma.org

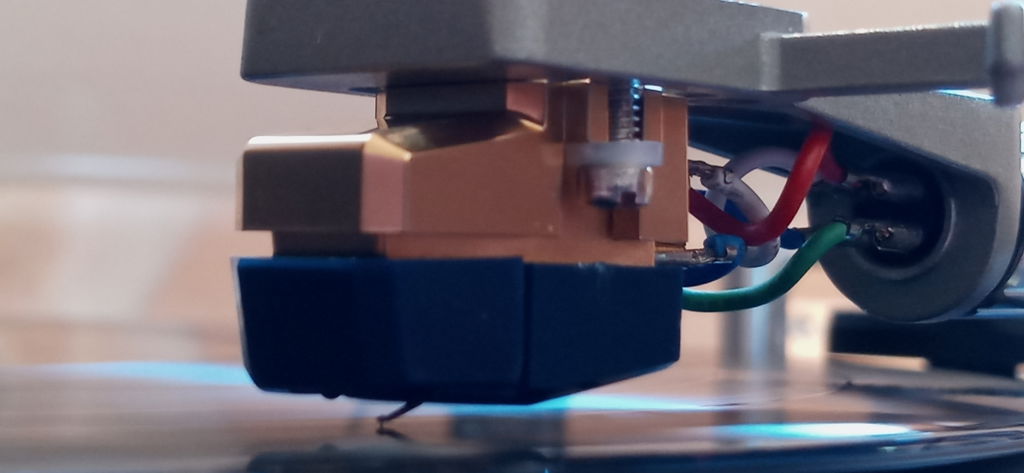

"The AT7V is installed and working very well. It's an excellent cart, much cleaner and more refined than my old Ortofon OM10. Thank you very much!"
- VS (customer from Australia)
